Silent Mobility & Structural Durability: Premium Luggage Wheels, Handles & Hardware Engineering

Listen to the Wheels in Any Airport Terminal — You'll Hear the Difference

Stand in any departure hall for five minutes and close your eyes. You'll hear it: the rattle of cheap bearings, the scrape of hard plastic treads, the thunk of a handle that won't lock. Then you'll hear the quiet ones glide past.

The difference between ordinary luggage and premium luggage isn't what catches the eye. It's what remains unheard and unseen — the smooth glide across a terminal floor, the effortless extension of a handle, the reliable click of a lock. These are the components we've spent over 16 years perfecting, and this article walks through the engineering behind them.

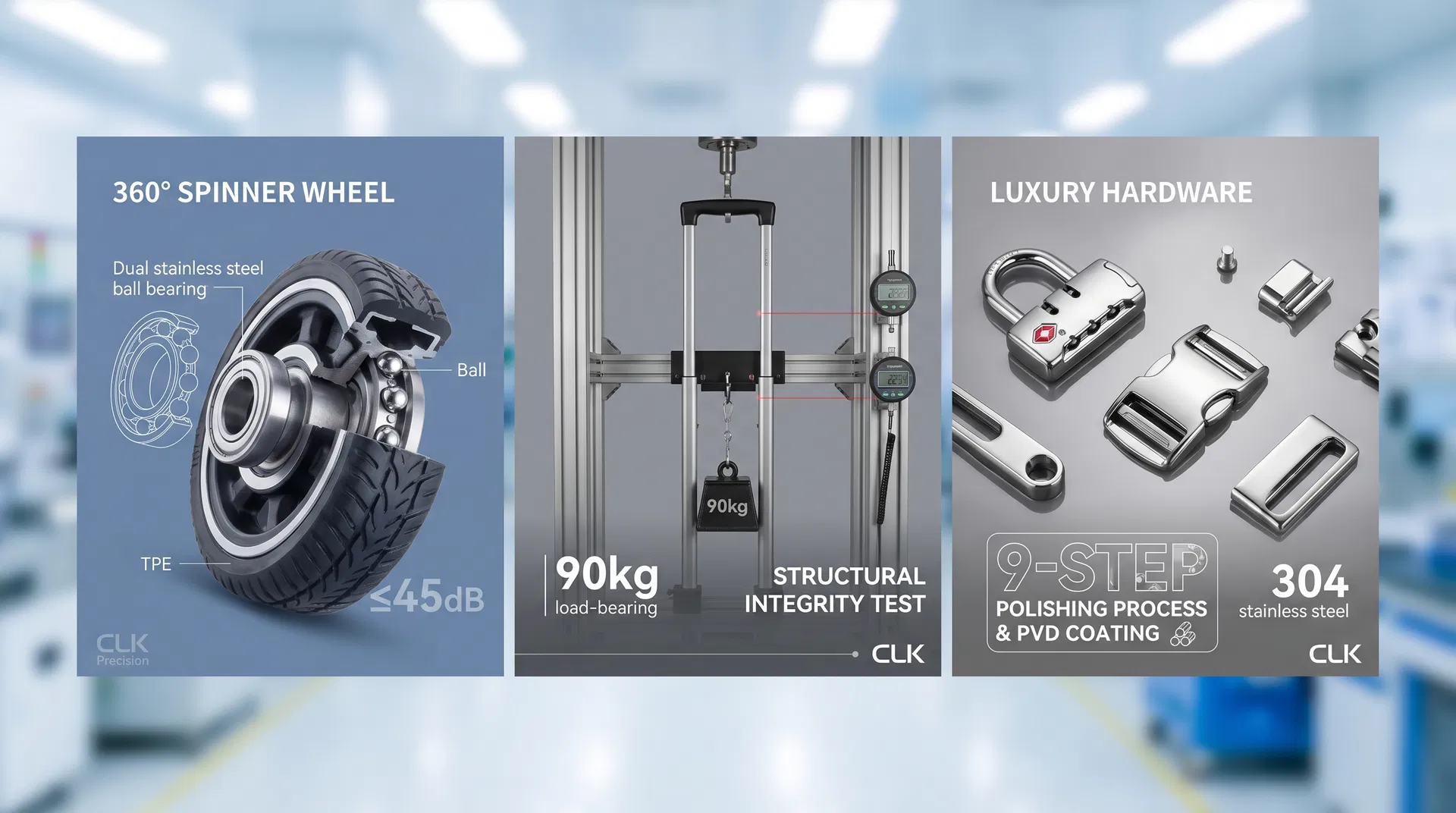

Part 1: Silent Mobility — Premium Luggage Wheels

The Silent Wheel Advantage

In busy airports, train stations, and hotel corridors, noise is an invisible quality metric. Our premium wheels operate at ≤45dB — quieter than ambient library noise (50dB). It's a refined travel experience that respects both the traveler and everyone around them.

This silence isn't accidental. It's engineered across several dimensions.

Precision Manufacturing

Each wheel begins with dual stainless steel ball bearings — the mechanical heart of smooth rotation. They're manufactured through precision injection molding at controlled temperatures (190-230°C), which ensures a consistent molecular structure and eliminates the defects that cause friction and noise.

The high-elasticity TPE (Thermoplastic Elastomer) tread absorbs vibrations while keeping grip across diverse surfaces. Rigid plastic treads transmit every surface imperfection into noise; TPE treads dampen acoustic energy while providing superior traction.

Rigorous Durability Testing

Abrasion resistance: each wheel runs 15,000 cycles of abrasion testing on concrete, with wear limited to ≤0.5mm. That simulates roughly 50 years of typical travel use.
Impact resilience: 500 impact trials replicate real-world baggage handling. Each test is a 10kg drop from 50cm — the forces a bag meets on the tarmac. Wheels must keep their structural integrity and operational smoothness after all of it.
Rotation precision: the 360° rotation base uses CNC-machined aluminum joints with a wobble tolerance of ≤0.3mm, eliminating jamming and keeping rotation smooth after extended use.

Wheel Customization

Size options: 50mm, 60mm, 70mm diameters for different luggage styles and weight capacities
Tread patterns for different environments — smooth for polished floors, aggressive for outdoor terrain
Full color matching to luggage designs and brand aesthetics
Logo integration with 5-day sampling for rapid prototyping
TPE formulation variants based on climate and usage conditions

Part 2: Structural Integrity — Aerospace-Grade Telescopic Handles

The telescopic handle is the primary interface between traveler and luggage. It must be light yet strong, smooth yet locked solid. Our solution: aerospace-grade 6063-T6 aluminum alloy — the same material used in aircraft fuselage construction.

Why 6063-T6 Aluminum

Tensile strength: 240 MPa, compared to 170 MPa for standard aluminum
Yield strength: 215 MPa
Density: 2.7 g/cm³ — lightweight yet rigid
Corrosion resistance: excellent against atmospheric corrosion
Machinability: superior precision manufacturing capabilities

That material choice delivers a 90kg load-bearing capacity — a fully loaded case plus the stress of aggressive handling, and the handle doesn't flinch.

Precision Engineering

Wobble tolerance ≤0.8cm across the full extension range — stable, confident operation
Multi-stage telescoping with precision-fitted segments
Spring-loaded locking at each extension stage

Durability Through Rigorous Testing

Cycle testing: the stainless steel spring mechanism endures 60,000 opening/closing cycles — roughly 20 years of daily travel. Locking reliability holds throughout.
Corrosion resistance: 72-hour salt-spray testing per ASTM B117, simulating harsh environments. The handle must keep its structure and appearance.
Load bearing verification: static and dynamic tests confirm the 90kg capacity under sudden jerking motions and sustained pulling forces.

Handle Customization

2-stage or 3-stage designs for different luggage heights and preferences
Grip materials: leather for luxury positioning, rubber for comfort and durability
Laser engraving for custom logos and brand identification
Anodized finishes in multiple colors to match luggage designs
Ergonomic variations — grip diameters and shapes for different user demographics

Part 3: Luxury Hardware — the Details That Define Premium Quality

Standard luggage often uses zinc alloy or low-grade stainless steel. Our luxury hardware exclusively uses 304 stainless steel and brass — chosen for corrosion resistance, aesthetic appeal, and durability.

TSA Lock Integration

TSA (Transportation Security Administration) locks are the gold standard in travel security: security personnel can inspect luggage without damaging the lock, and the traveler stays protected.

Material: 304 stainless steel body with hardened steel internal mechanisms
Compliance: ISO 17025 certification ensures compatibility with TSA inspection procedures
Security level: resistant to common lock-picking techniques while remaining accessible to authorized personnel
Reliability: tested for 10,000+ opening/closing cycles without mechanical failure

The 9-Step Mirror Polishing Process

Raw metal becomes mirror-finished hardware through nine deliberate steps: initial grinding removes casting imperfections; coarse polishing establishes smoothness (120-grit); medium polishing refines texture (240-grit); fine polishing approaches a mirror finish (400-grit); ultra-fine polishing perfects it (600-grit); buffing removes micro-scratches; cleaning degreases the surface; PVD coating applies the protective layer; final inspection verifies quality under controlled lighting.

PVD Coating

Physical Vapor Deposition creates a molecular-level protective layer that prevents corrosion (resisting salt spray, humidity, and contaminants), preserves the mirror polish, increases surface hardness and scratch resistance, and keeps the hardware looking new for years.

Hardware Customization

Enamel inlay — colored enamel inserts on locks and buckles for brand color integration
Embossed logos on hardware surfaces
Material options: brass accents for luxury, stainless steel for modern aesthetics
Finish variations: polished, brushed, or matte
Size customization for different luggage styles

Production parameters: MOQ 50 units, mass production lead time 12 days, custom samples available for design verification.

Part 4: How the Components Work Together

Premium quality emerges from integration — and we test it as a system, not as separate parts. Wheels deliver the silent mobility that showcases the whole product; handles give confident control; hardware secures and adds visual luxury. Each must perform reliably while complementing the others.

In practice: silent wheels (≤45dB) navigate busy terminals without disturbing anyone, and the 360° base maneuvers through crowds. Aerospace-grade handles absorb aggressive baggage handling while TSA locks hold security through inspection. After weeks of travel, wheels stay smooth, handles keep locking, hardware keeps its polish.

Part 5: Quality Assurance & Certification

Our QA exceeds industry standards: ISO 17025 certification verifies TSA lock compliance; ASTM B117 validates salt-spray corrosion resistance; mechanical testing covers load-bearing and durability; aesthetic inspection checks visual quality under standardized lighting. Continuous improvement runs through failure analysis, material innovation, process optimization, and customer feedback integration.

Part 6: What This Means for OEM/ODM Partners

Wheel customization covers size, tread, and color with 5-day sampling and logo integration. Handles offer 2-stage or 3-stage options, leather or rubber grips, laser-engraved logos, and color/finish choices. Hardware supports enamel inlay, embossed logos, material and finish selection, and custom sizing — with a 50-unit MOQ and 12-day production lead time. Rapid prototyping and flexible MOQs scale from small batches to high-volume orders.

Part 7: Why Premium Components Are Worth It

Premium components are an investment in customer satisfaction and brand reputation. Travelers who feel smooth, silent wheels and reliable locks develop loyalty that outlasts the warranty. Silent operation separates premium products from budget alternatives; rigorous testing backs durability claims; mirror-polished hardware creates visible premium positioning. And over the product's life, durable components mean fewer warranty claims and a brand people recommend to their friends.

Premium luggage quality isn't one feature. It's the cumulative excellence of every component — silent wheels, reliable handles, secure hardware — each engineered to the same standard. That's the engineering behind a travel experience that lasts, and it's what we build every day.

About the Author

Written by the CLK Manufacturing Team — 16+ years of custom luggage OEM/ODM experience from our factory in Ji'an, Jiangxi, China. Updated: 2026-08-15.
